Opis

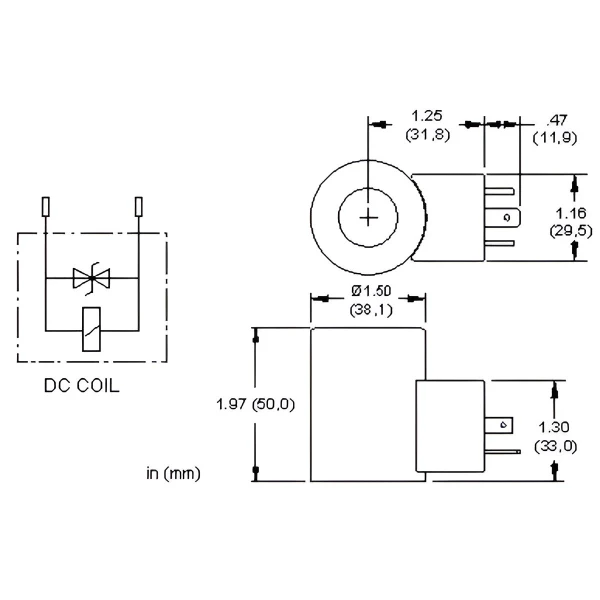

770224 SUN HYDRAULICS 770-224 SUN HYDRAULICS Maximum Coil Temperature at 68oF (20oC) Ambient: 218oF (105oC) Arc Suppression (TVS): Included Power Consumption (cold) – at rated voltage: 22 watts ; 26.2 OM Maximum Ambient Temperature: 122 °F Voltage/Frequency: 24 VDC Operating Voltage Range: +/- 10% nominal Duty Cycle Rating: 100 % Connector: ISO4400 – EN/DIN175301-803. Form A (ISO/DIN 43650) 3-pin Connector Environment Rating: IP65/IP67 Solenoid Tube Diameter: 75 in. Coil Nut Torque: 4.5 lbf in. Model Weight: 0.51 lb. Form A connector with TVS Diode Maximum Current: 590 mA Length: 50 mm Hole diameter: 19 mm 24 VDC coil with ISO/DIN 43650 Nominal Coil Resistance at 68oF (20oC) Cold: 26.2 ±5% ohms Nominal Coil Resistance at 122oF (50oC) Stabilized: 37.2 ±5% ohms Magnetspule Solenoid coil Bobine de solénoide Bobina del solenoide
